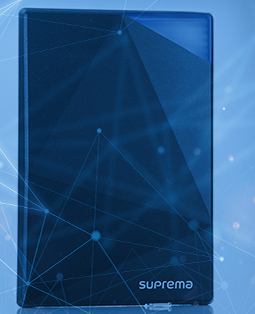

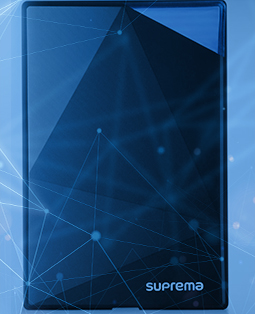

Xpass S2

Xpass S2


DESCRIPTION

The RF reader and door controller (“reader/controller”) shall be an IP-enabled device capable of scanning RFID cards, managing users and controlling access.

FEATURES

  1. 11.4 mm super slim design
  2. Supports up to 50,000 users and 100,000 logs
  3. IP65 certified
  4. Operates between -35 °C to 65 °C
  5. TCP/IP, RS-485, Wiegand, Relay interface
  6. Multi smartcard reading (13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa)



SPECIFICATIONS

General

IP Rating

IP65

RF Option

XPS2M: 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1 (CSN), FeliCa

Multi-Controller

Yes

Certificates

CE, FCC, KC, RoHS, REACH

Capacity

Max. User (1:1)

50,000

Max. User (1:N)

50,000

Max. Text Log

100,000

Interface

TCP/IP

Yes

RS-485

1ch Host or 1ch Slave (Selectable)

Wiegand

1ch In or 1ch Out (Selectable)

Input

2 Inputs

Relay

1 Relay

Mechanical

CPU

533MHz DSP

Memory

16MB RAM + 16MB Flash

LED Indicator

Multi-Color

Sound

Multi-tone Buzzer

Operating Temp.

-35° to 65°C

Tamper

Yes

Dimensions

80 x 120 x 11.4 (WxHxD mm)

Electrical

Power

Min. 10 VDC

Typ. 12 VDC

Max. 13 VDC

Consumption

Max. 270 mA

Switch Input VIN

Max. 5.0 V

Relay

Form C Relay

Voltage: Max. 24 VDC

Current: Typ. 0.5 A, Max. 1 A

Platform

BioStar 1

Supported

BioStar 2

Supported
